Waste Heat Recovery

Super Radiator Coils High Temperature Waste Heat Recovery Heat Exchangers (WHRUs) are designed to operate efficiently in high temperature and high pressure applications.

Whether a new build or a rebuild of an existing piece of equipment, SRC engineering experts develop WHRUs for maximum heat recovery up to 2,200˚F and designed to your specifications.

These products are commonly found on Thermal Oxidizers, Boilers (Firetube and Watertube), Turbines and Industrial Ovens

Certifications

U-Stamp
UM-Stamp
crn-logo
Waste-Heat-Recovery

Waste Heat Recovery

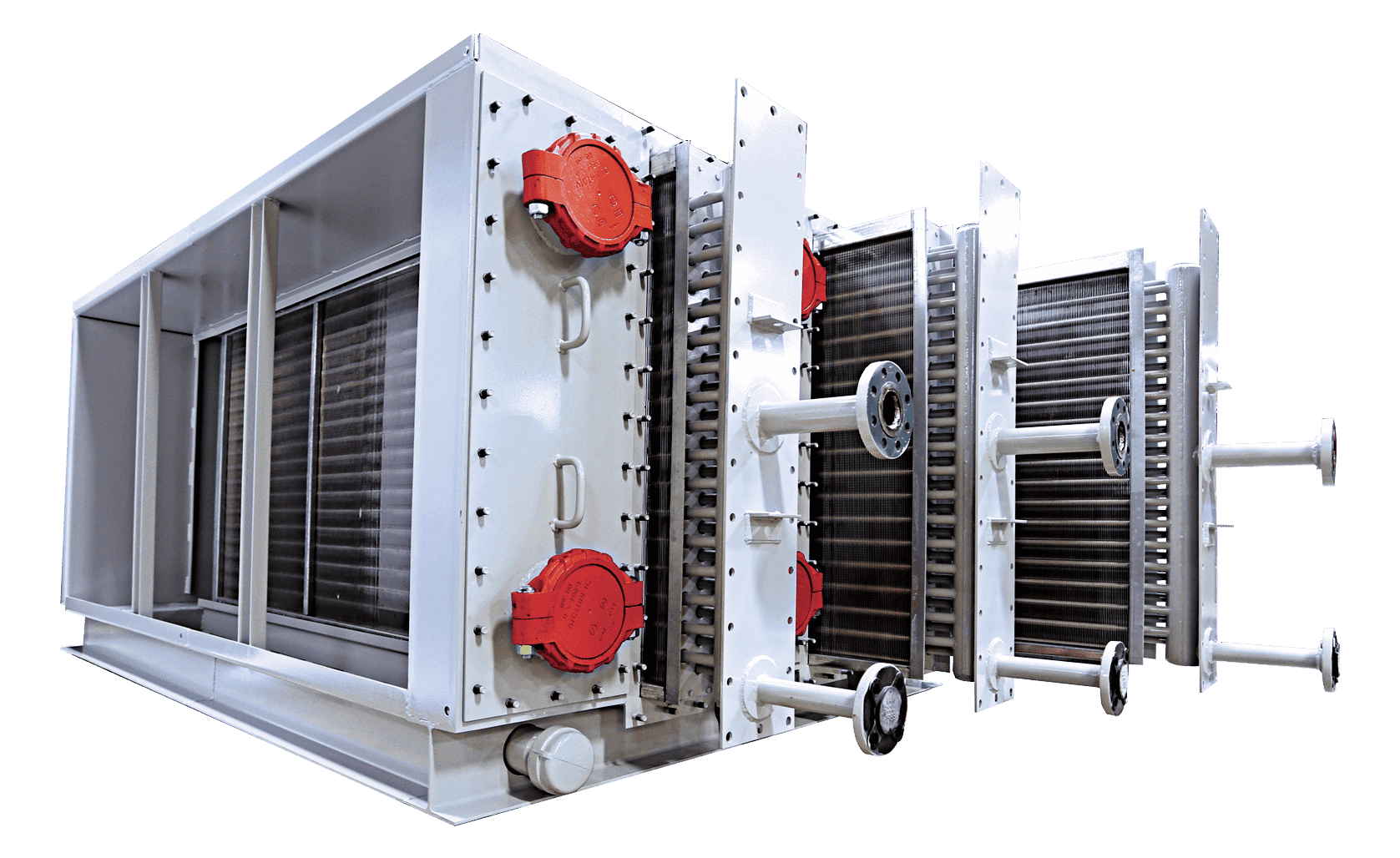

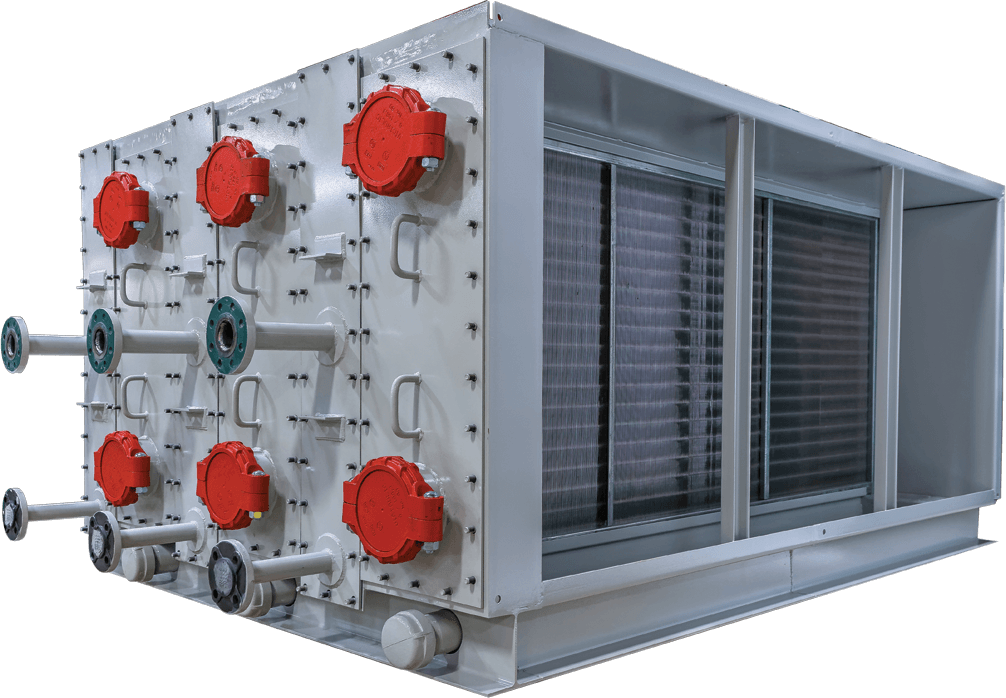

This heat recovery unit was built by Super Radiator Coils and included both the heat exchanger and the enclosure. The 3 heat exchangers are designed with stainless tube and aluminum fins in a stainless steel casing.  The heat exchangers are removable and the housing incorporate rollers to facilitate easy removal.  Victaulic connections complete the connection to the customer piping.

Waste-Heat-Recovery

Waste Heat Recovery

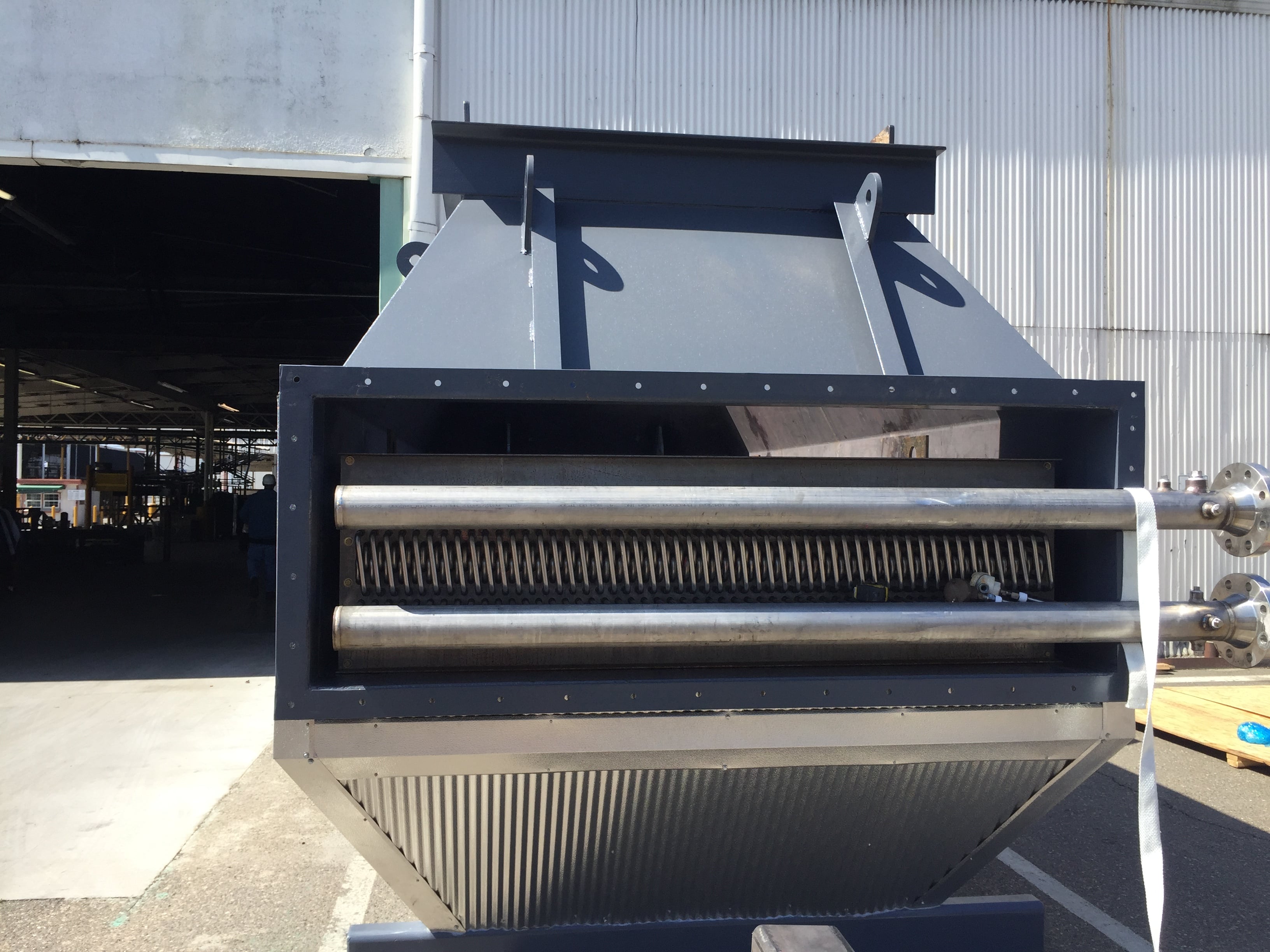

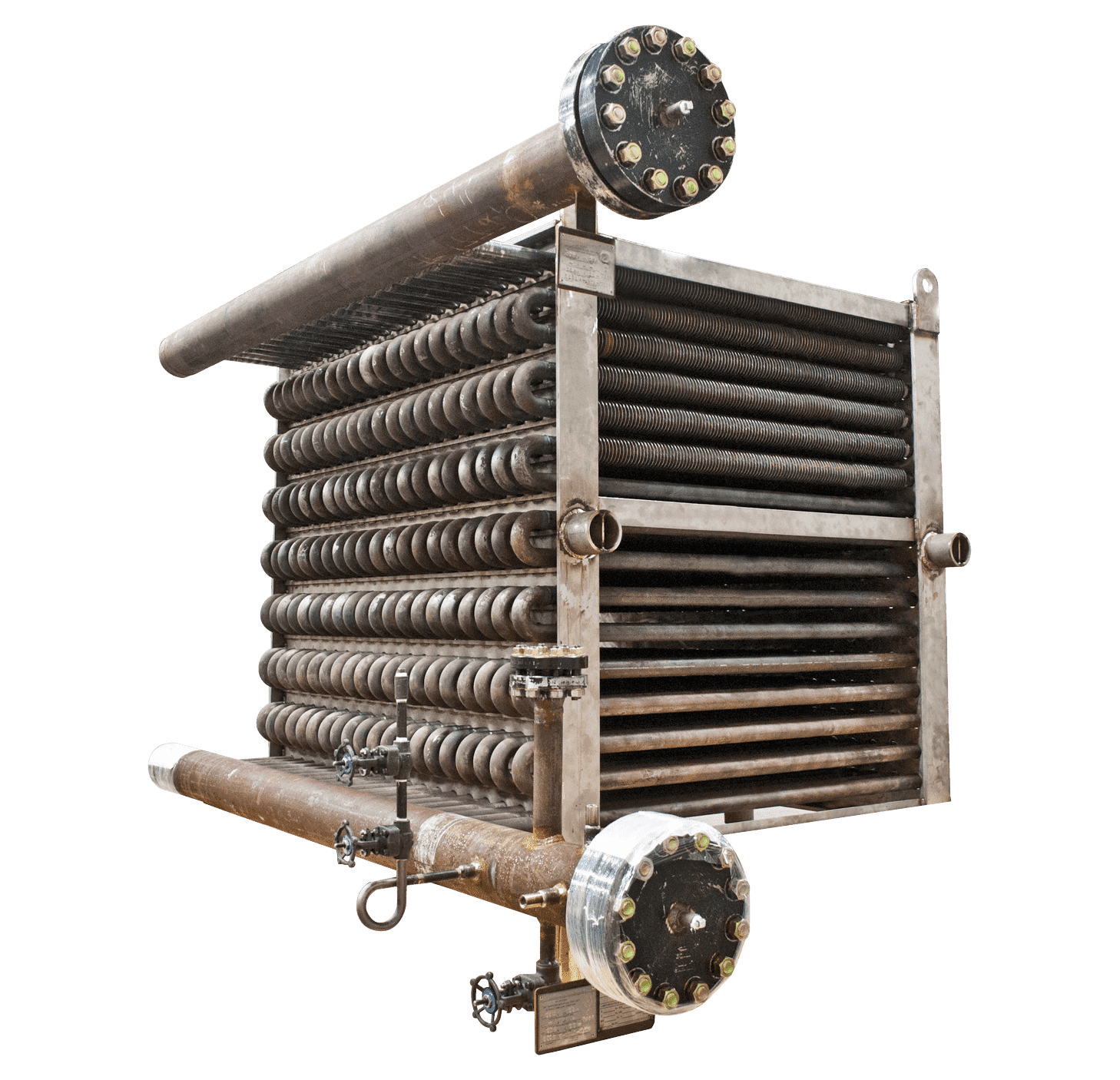

The airflow in this application is vertical up.  As air passes over the bare tubes, they act as sacrificial tubes collecting contamination from the airstream. The top portion of the heat exchanger features carbon steel tube and fin embedded spiral wrap heat tube. The final pieces are 4" schedule 80 carbon steel pipe headers with 600# flat face flanges.

Waste-Heat-Recovery

Waste Heat Recovery

This 6 row stainless steel tube, carbon steel fin plate fin design.  Stainless steel tubes were chosen over carbon steel for their corrosion resistance.  It is common in food processing applications to not completely drain the unit which can cause pitting and leaks.

Additionally,  5/8 stainless steel tubes were used as they allow for a greater number of tubes in the space, and better heat transfer, versus the traditional 2" OD carbon steel pipes.

Waste-Heat-Recovery
Waste-Heat-Recovery

Waste Heat Recovery

Waste-Heat-Recovery

Waste Heat Recovery

Waste-Heat-Recovery

Waste Heat Recovery

See What Makes Us Super

TIC Test Tank-1

Designed, Engineered, and Built for Quality

We're obsessed with quality at Super Radiator Coils. We've invested heavily in quality programs over the years, and our internal standards are among the industry's best. Nothing leaves our factory without thorough nitrogen, helium, or hydrostatic testing to ensure leak-free operation.

Welding

Built by Experts

Our manufacturing personnel are the best around. Our welders and brazers are certified under ASME Section IX code to ensure that all welds and braze joints measure up to the level of quality our customers have come to expect. All welding and brazing programs are directed by Certified Weld Inspectors (CWIs).

HVAC

Designed to Work

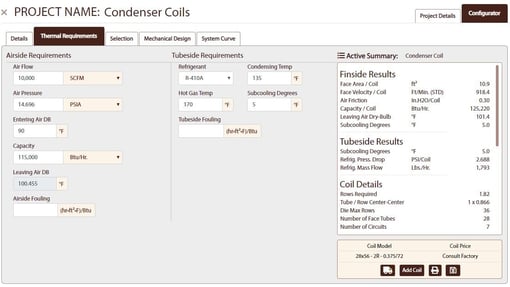

Our heat exchangers just work. From using our expert gas stream analyses to determine optimal material selection to the reduced weight and increased efficiency provided by them, we know our products will work because we've done the research to prove it.
