Power Generation

Uptime. Reliability. Efficiency.

Three important words that govern daily life in the power industry. If it's not running, it's not producing power.

At Super Radiator Coils, we support operation in simple and combined cycle power plants, nuclear, waste/trash burning, and diesel power generation facilities. These sites range in size from 5MW to 1400MW and use a broad range of fuel sources.

Certifications

N-Stamp_Gray
NPT-Stamp_Gray
NS-Stamp_Gray
U-Stamp
UM-Stamp
CE-Logo_Gray
crn-logo

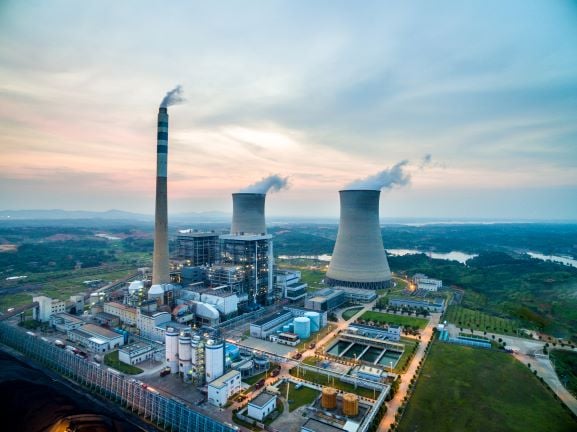

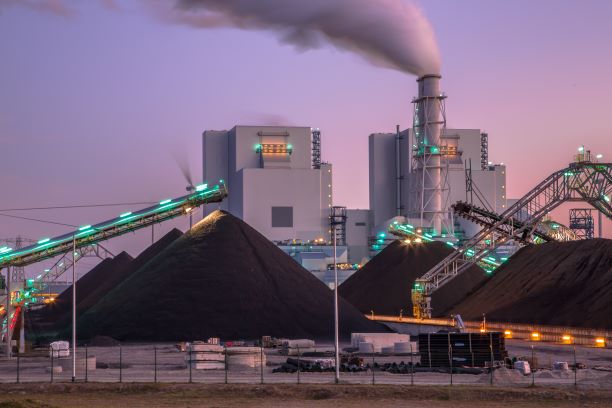

Power Plant Hero Image - Website

Reactor Containment Cooling Coils

This coil design is used in the nuclear power industry and is certified under ASME N, Class 2. The product is manufactured with copper-nickel tubes and copper plate fins. The pipe headers are made from stainless steel and are braced for vibration.

Learn More

Reactor-Containment-Cooling-Coils

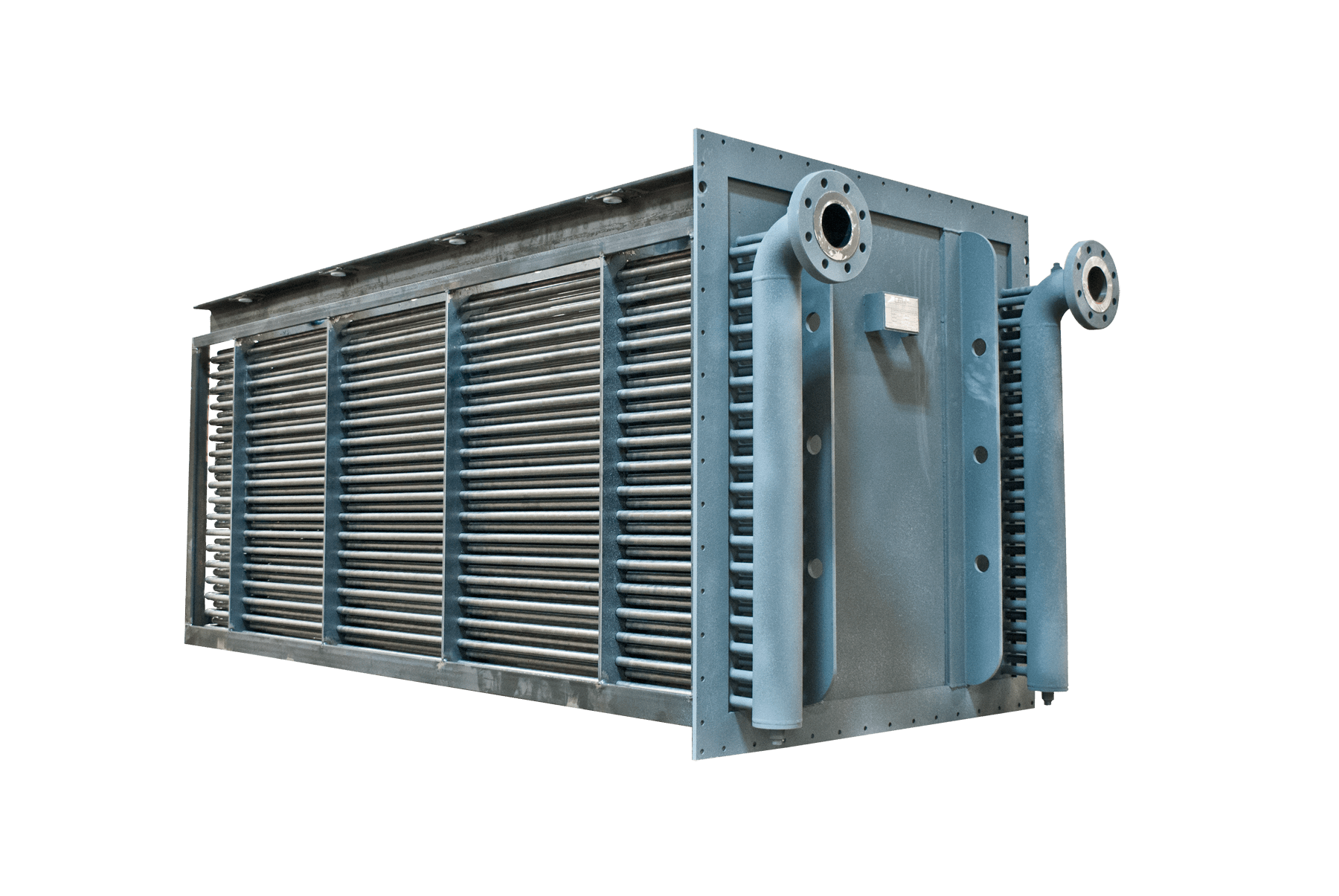

Steam Coil Air Preheater

This heat exchanger is certified under the ASME U Section VIII, Div 1 Code program. It is constructed of solder-coated copper fin tube and includes a water box removable cover box for ease of cleaning and access.

Learn More

Steam-Coil-Air-Preheater

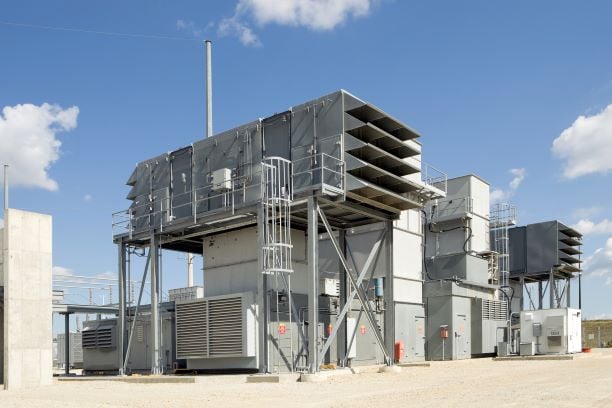

Turbine Inlet Cooling/Heating Coils

Turbine inlet Cooling and Heating Coils are a vital contributor to turbine performance. This project featured coils 400" in length with copper tubes, aluminum fin, and stainless steel headers with E-coat applied after fabrication. The product is certified under the ASME Section XIII U stamp program.

Learn More

Turbine-Inlet-Cooling/Heating-Coils

Fluidized Bed Dryers

Fluidized bed dryer heat exchangers feature a bare tube design because of the contaminated fluid stream and airborne particulates. The construction of this heat exchanger features 1" carbon steel tube with 0.134" wall thickness. A rigid frame reinforced with angle iron provides structural integrity. This product is certified under the ASME Section VIII, Div 1 Code.

Learn More

Fluidized-Bed-Dryers

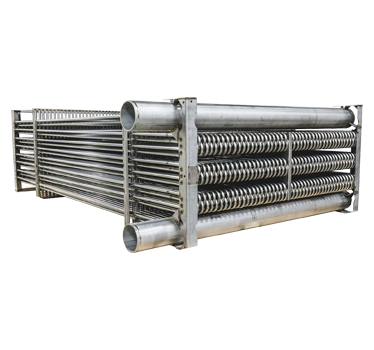

Plume Abatement Coils

Plume abatement coils are used in power facilities that are close to large population centers. They encounter contaminated airstreams given their location to exhaust air. These coils are made from 7/8" 316 stainless steel tube with .083" wall. The structural components are also made of 316 stainless steel.

Learn More

Plume-Abatment-Coils
Reactor-Containment-Cooling-Coils

Reactor Containment Cooling Coils

Steam-Coil-Air-Preheater

Steam Coil Air Preheater

Turbine-Inlet-Cooling/Heating-Coils

Turbine Inlet Cooling/Heating Coils

Fluidized-Bed-Dryers

Fluidized Bed Dryers

Plume-Abatment-Coils

Plume Abatement Coils

See What Makes Us Super

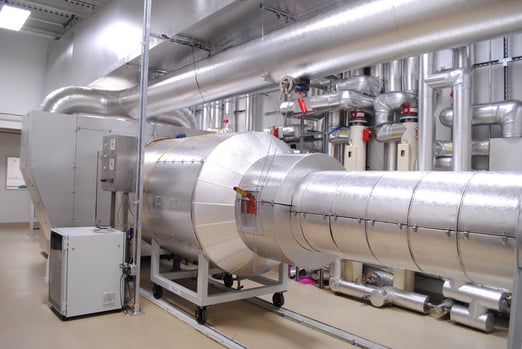

test-lab-web size

Designed with Confidence

Designs for the power generation industry are supported by internal and external software programs as well as the Super Radiator Coils wind tunnel facility. Designs are tested to validate theoretical performance.

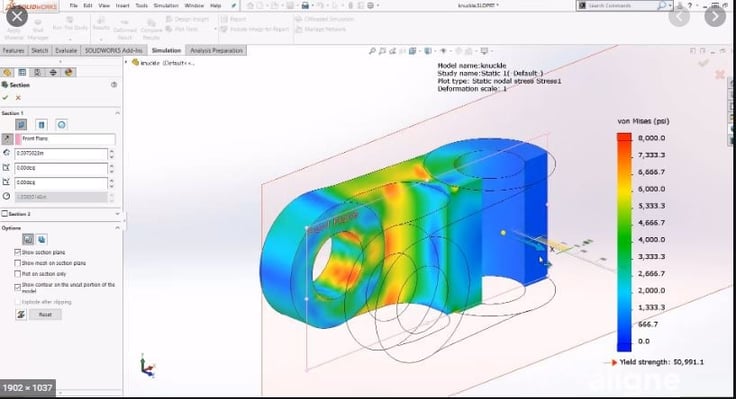

Solidworks

Designed to Fit

Prior to manufacturing, all products are built using Solidworks to confirm critical dimensions. We offer .stp files and approval drawings.

Waste-Heat-Recovery_1

Built for the Application

Proper maintenance is an essential component of product longevity. SRC features robust material of construction such as 0.032" aluminum fin or slide housing construction.
