Compressed Gas Coolers

SRC designs and manufactures custom compressed gas precoolers, intercoolers, and aftercoolers for extreme conditions.

Compressed gas coolers reject the heat added by compressor equipment to the compressed flow. Compressed gas coolers are commonly used in compressed air, compressed natural gas, and other process gas applications.

Common market segments for this product capability are CNG filing stations, pipeline booster stations, landfill gas, and gas storage facilities.

Certifications

U-Stamp
UM-Stamp
crn-logo
CE-Logo_Gray
API-661-1
Compressed-Gas-Cooler

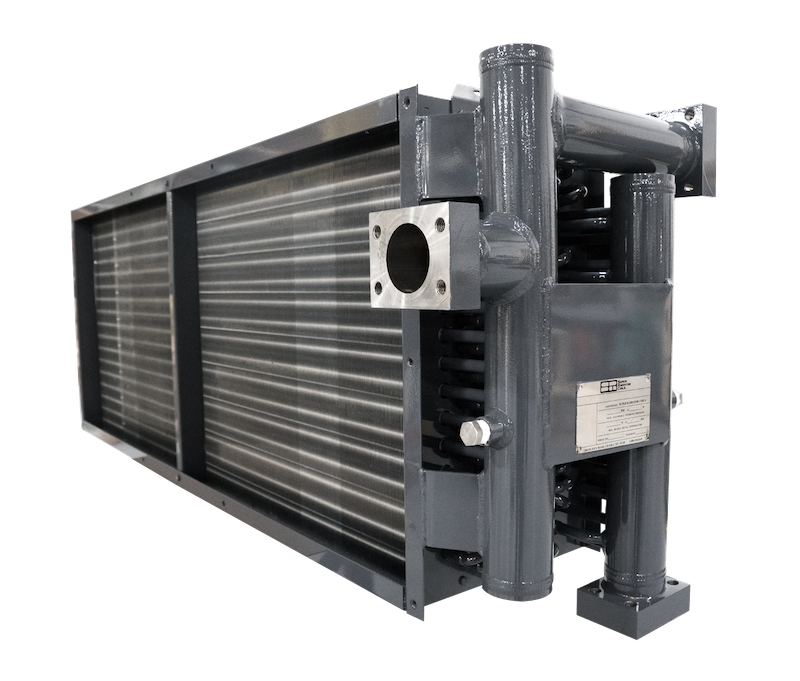

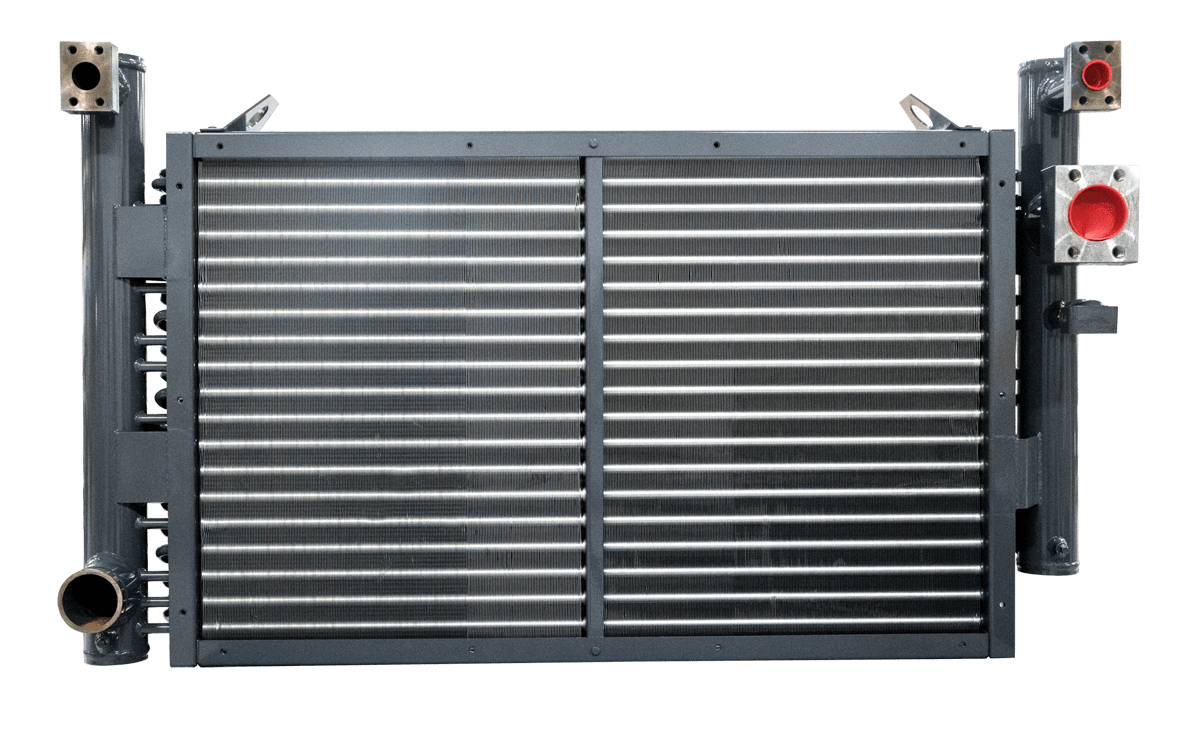

Booster Coil

This heat exchanger features tubes and fins made from carbon steel and is powder coated for rust prevention. This example has SAE-style hydraulic fittings to account for high pressures, but we're able to include any industry-specific fittings at the customer's request. The product also features header and casing brackets to account for the heavy vibration created by the compression process, especially during startup.

Booster-Coil

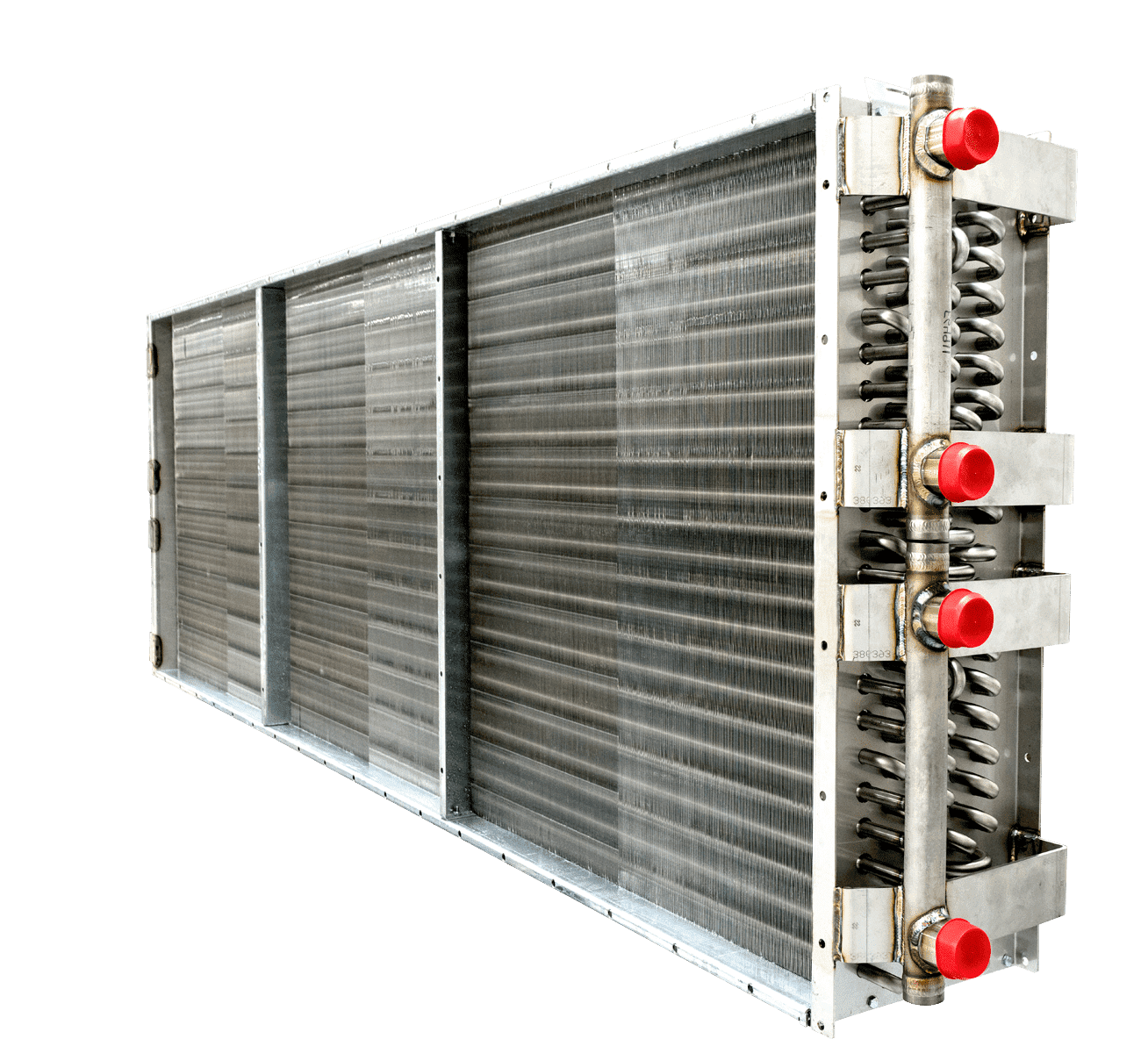

Compressed Natural Gas Cooler

This coil is a multi-stage gas cooler designed for use in the compressed natural gas (CNG) industry. It features 304 stainless steel tubes for corrosion protection and aluminum fins for optimal heat transfer. It also has header bracket reinforcement to account for heavy vibration created by the gas compression process.

Compressed-Gas-Cooler

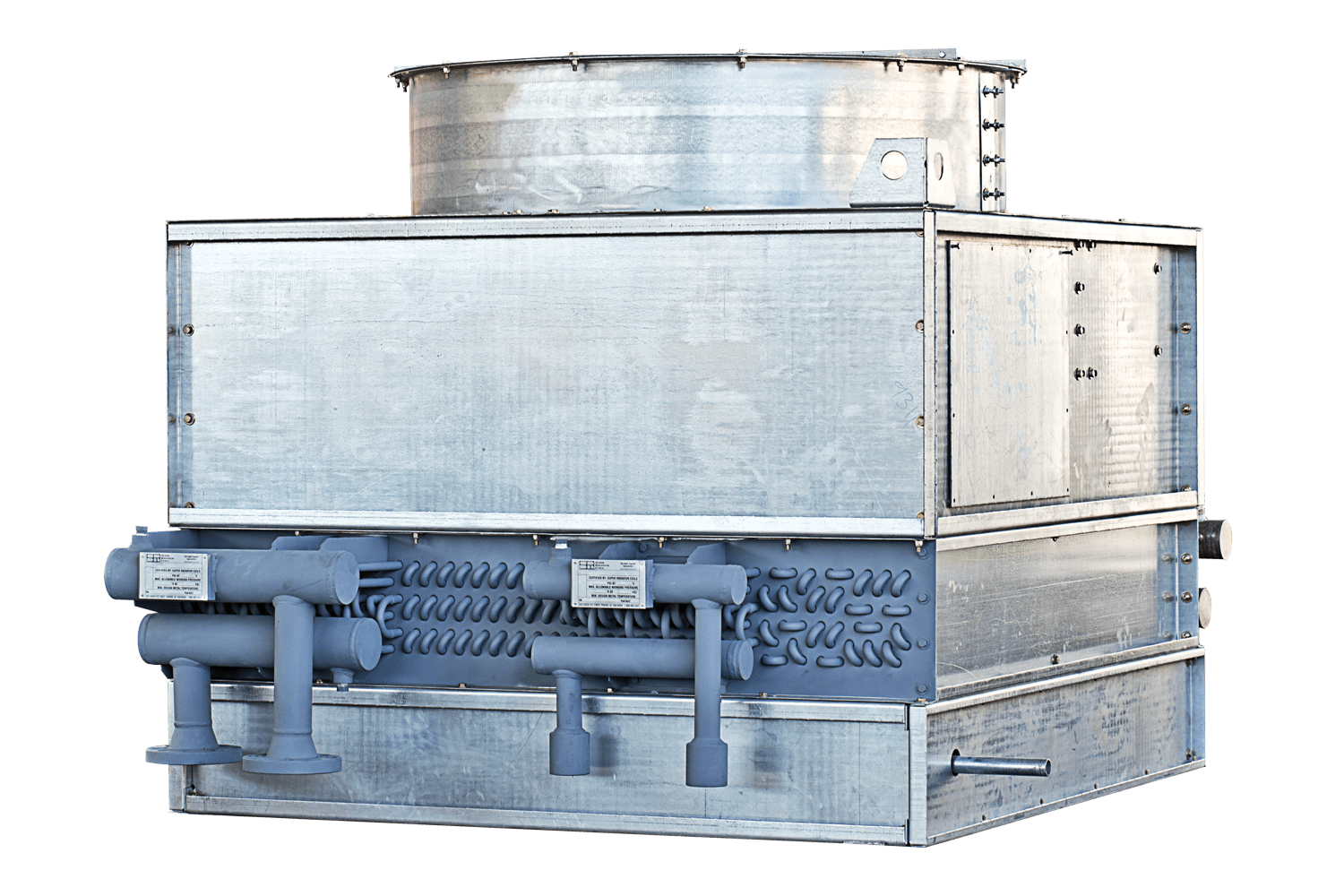

Compressed Gas Cooler

This example is a compressed gas cooler rated for up to 5000 psig. Its design elements include louvers located on the bottom of the unit, which allow for easy access, and its 4-stage single coil design allows it to have a smaller footprint. Its construction for the lower pressure stages consisted of carbon steel tube and pipe with aluminum fins, and for the high pressure stages, 304 stainless steel tube and pipe were used along with aluminum fins.

Air-Coolers-1-1
Booster-Coil

Booster Coil

Compressed-Gas-Cooler

Compressed Natural Gas Cooler

Air-Coolers-1-1

Compressed Gas Cooler

See What Makes Us Super

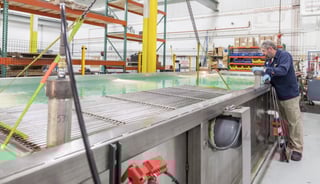

IMG_0381.jpg.p

Design Features & Benefits

  • Designs include separate single stage or multi-stage coolers
  • Multiple connections to maximize system performance and minimize piping runs
  • Reinforcement and bracing to withstand vibrations from compressor equipment
  • Corrosion resistant construction
  • Designs available for pressures up to 5,500 psig

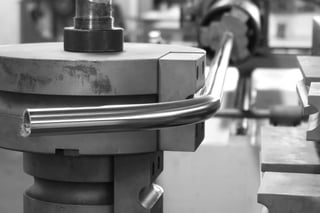

Tube Bending - website

Materials of Construction

  • Carbon steel tube and fin
  • 300 series Stainless Steel tube and fin
  • Header Types: Pipe, Plug Box and Removable Cover
  • Other materials available upon request

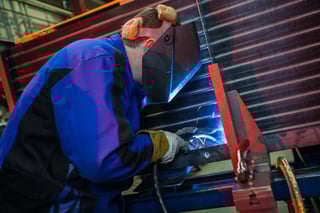

Welding

Built By Experts

Our manufacturing personnel are the best around. Our welders and brazers are certified under ASME Section IX code to ensure that all welds and braze joints measure up to the level of quality our customers have come to expect. All welding and brazing programs are directed by Certified Weld Inspectors (CWIs).
